Simple Curve

How to increase or decrease control points

Left-Click on the “Free Curve” icon to enter the command of drawing line.


◆ Add new curve control point：Left mouse click on the Viewport.

◆ Add a duplicate curve point：Left  button Double-click on the same control point, a duplicate point will be added.

◆ Delete point：Hold down the Left button and click the right button to delete control points

“Spacebar” to end the command

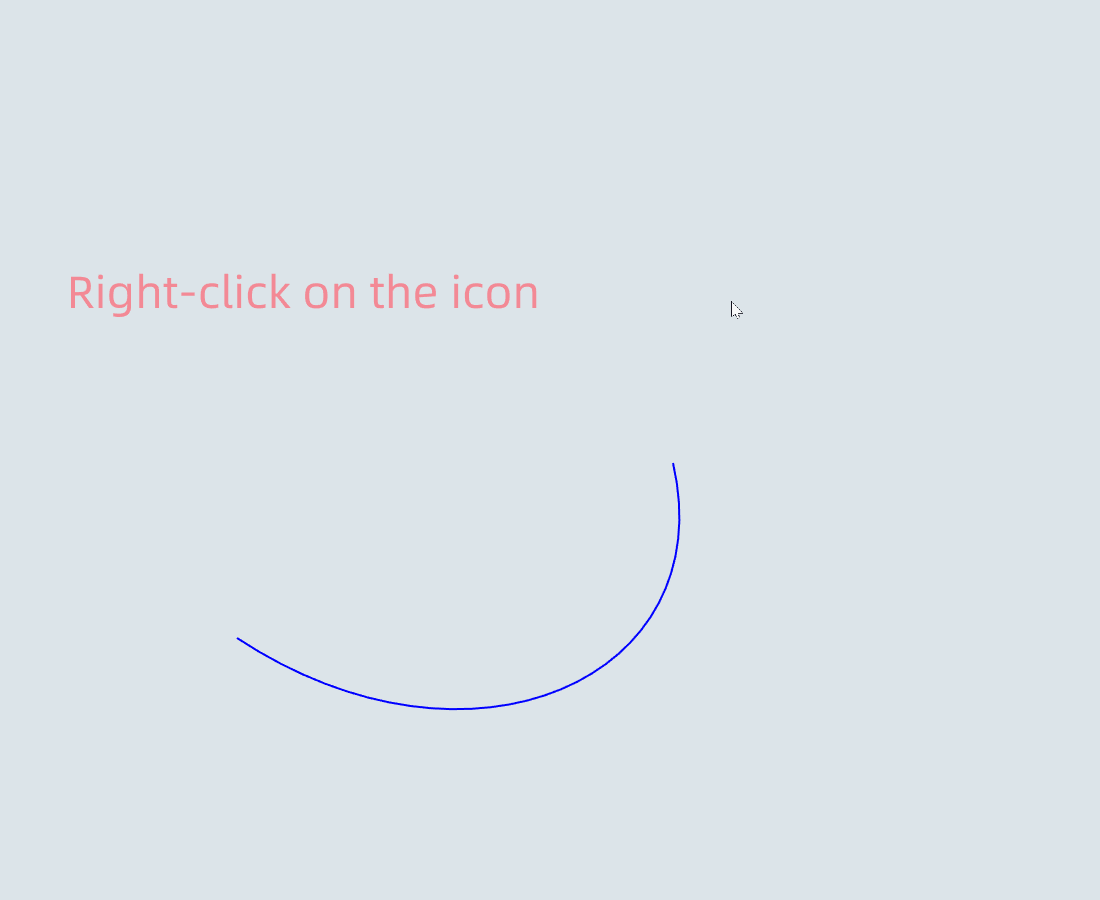

How to edit the curve again

Right-Click on the icon and select curve to edit



The Role of Command Line Options for Drawing

◆Curve Color：Changes the color when drawing and creating curves.（Hotkeys： A + Spacebar）


◆ Ortho：Open ortho mode can draw straight line（Hotkeys： S + Spacebar）


◆Close：Closes the open curves.（Hotkeys：D + Spacebar）



◆ Thickness：The thickness of the curve, Default value is 2, usually do not modify（Hotkeys： V + Spacebar）



Advanced operations（Premise：Open Object axis）

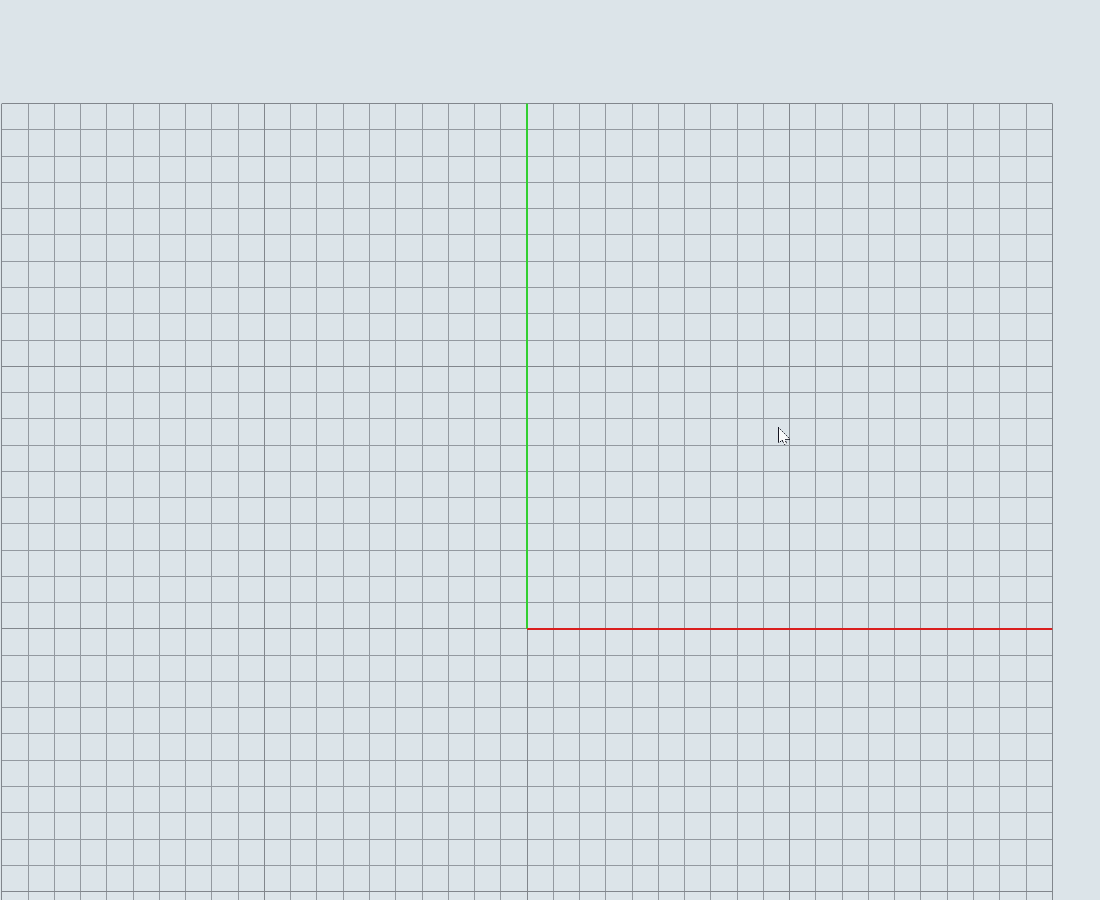

◆ Hold down Ctrl + left mouse button and click on the Viewport to Draw a new curve.

◆ Hold down Shift + left mouse button and click  other curves to Edit other curves.


Video Tutorials

◆ If you want to learn by video, click on the link below to jump to Youtube

【 Curve Drawing Tools 】How to use the SimpleCurve tool
