Functions in the plugin don't work properly anymore?
The following situation has arisen :
① Clicking on some functions of JFR does not respond, and the command bar shows “Unknown command”.
② Shortcut panel is invalid, and layers and materials cannot be assigned.
③ Can't switch view or inter-guide function can't be used.
④ JewellyForRhino.rhp error occurs during loading.
⑤ ------
Solution: Manually load the plug-in program and then restart Rhinoceros.

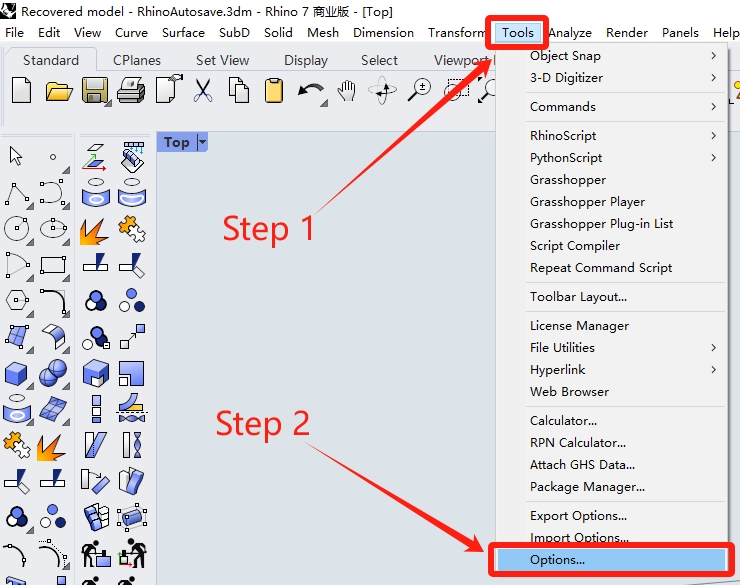

Step 1: Find “Options” in “Tools” on the top menu bar.

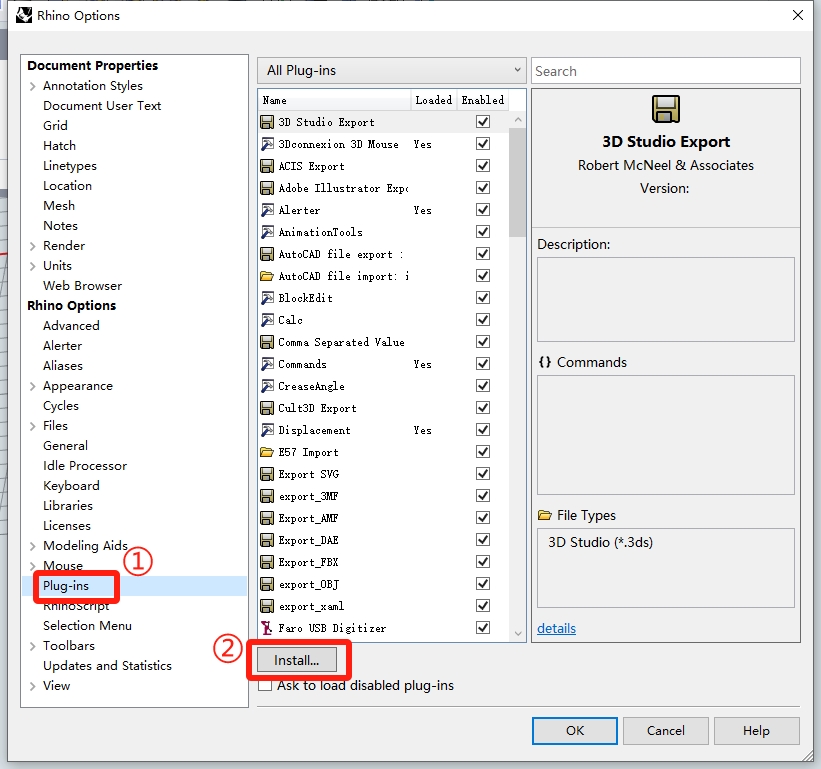

Step 2: ①Find the “Plug-ins” column on the left ②Click “Install”.

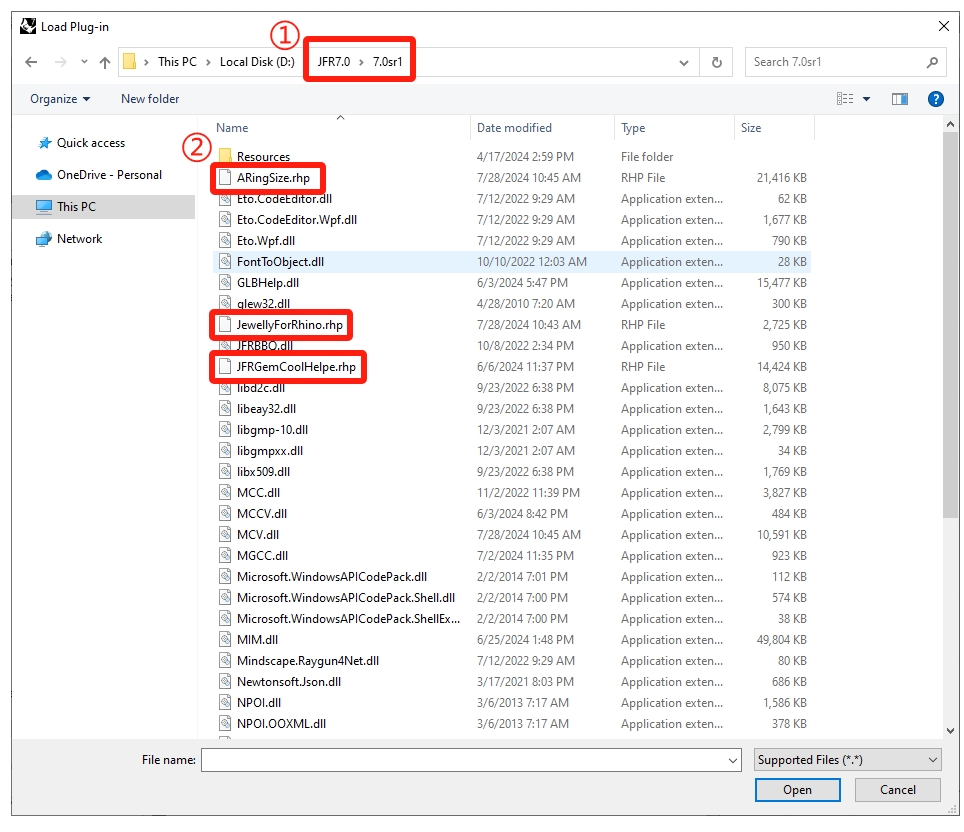

Step 3: Locate the folder in the plugin installation directory and load the appropriate plugin program.
① Find the folder in the plug-in installation directory.
◆ “7.0sr1” for Rhinoceros 7. ◆ Rhinoceros 6 is “6.0sr15”.
(The default path of the plug-in will be installed in D disk. If the installation path has been changed and cannot be found, please reinstall the plug-in.)
② Select “JewellyForRhino.rhp”、“ARingSize.rhp” and “JewellryForRhino.rhp” to open.

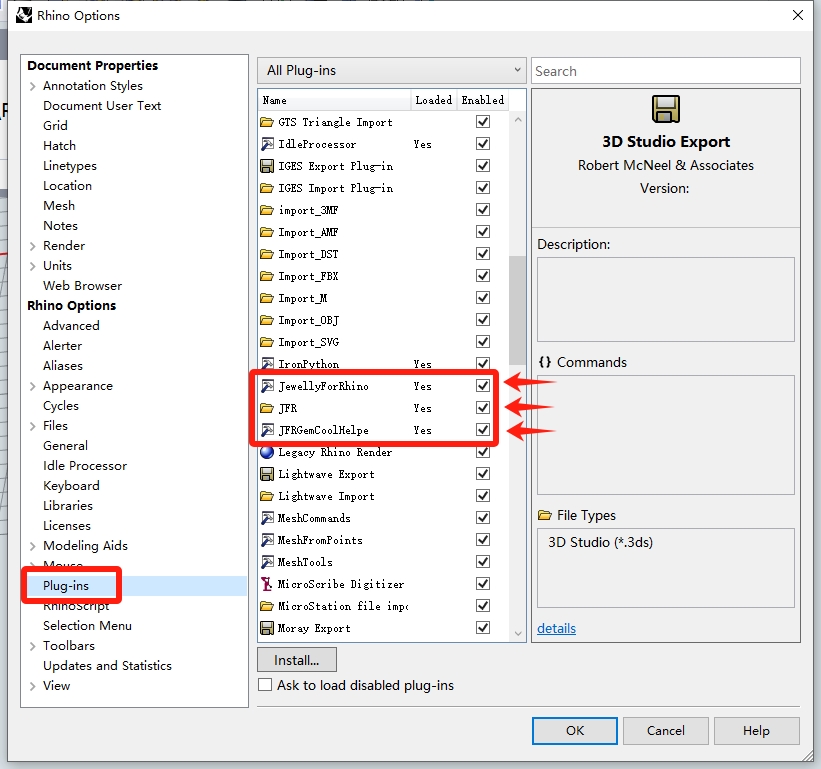

Make sure the plug-in program is checked ☑:
After checking the box, restart the Rhino software can be used normally!
(After reboot check if it is ticked, if it is not ticked please tick it and reboot again)

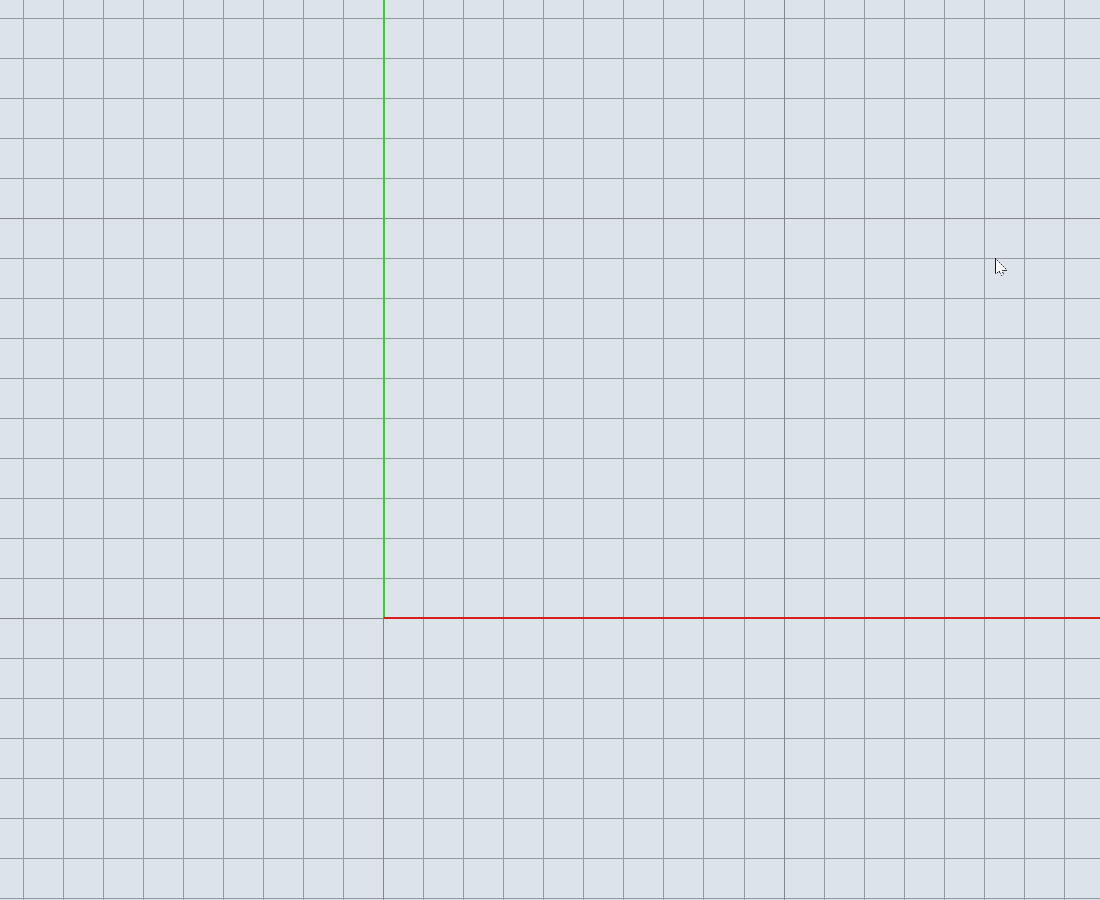

Detection:
When you use the function icon of the plug-in, the “Command Bar” does not show “Unknown Command”, which means that it is loaded successfully.
